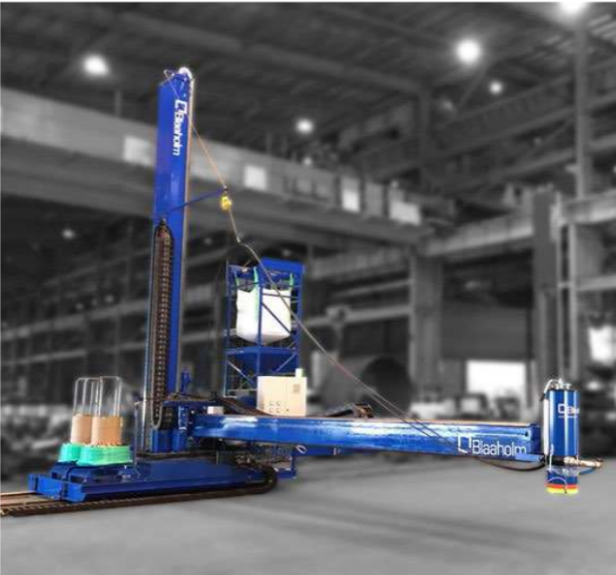

The Column and boom (C&B) is an essential machine to obtain a reliable and stable welding process. The extra heavy duty C&B from ENABL creates the perfect environment and condition for securing the process The machine is illustrated on Figure 1 and consists of:

Column and boom

Welding head and Lincoln equipment (Delivered by Uhrhan-Schwill)

Turntable, flux system etc.

Traversing base.

Electrical cabinets

The machine will function with a rotator. The interface between the machine and the rotator needs to be clarified before ordering.

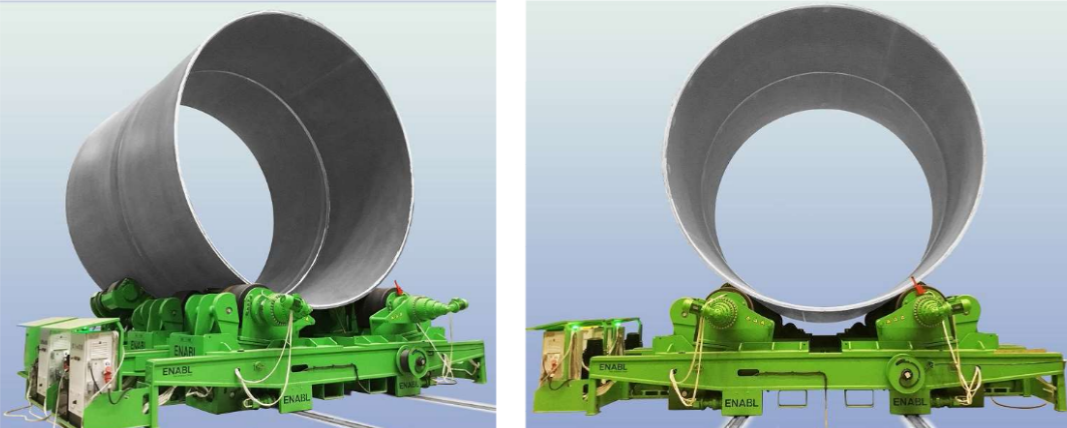

Growing Lines

300T Working Load Limit per unit – Up to 600T total WLL for config 1 + 13 combined

Adjustable according to diameter to accommodate different monopile sizes

Hydraulic powered height adjustment. o Distance blocks can also be added between the traverse and the frame to increase height further. Blocks should be made by customer to a specific project.

Electrically powered traverse boogies powered by 4 motors.

Monopile rotation speed range – 200 to 1400 mm/min

Interface to Internal and external welding device, Fitup stations and circ. Seam milling station

Working temperature- +5 to +30 .C

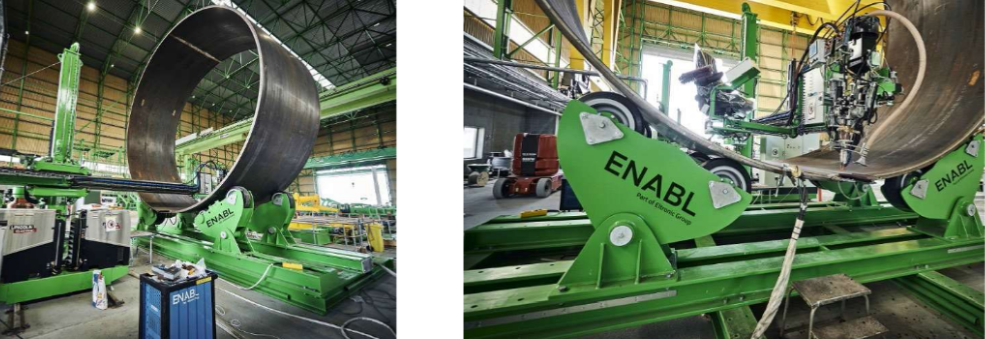

Longseam rotators

The Longseam rotator is the ultimate solution for the efficient and precise welding of internal and external longseam.

Features

Total 150T Working Load Limit

Adjustable rotation diameter to accommodate different shell sizes

Adjustable according to diameter

Interface to welding machine
